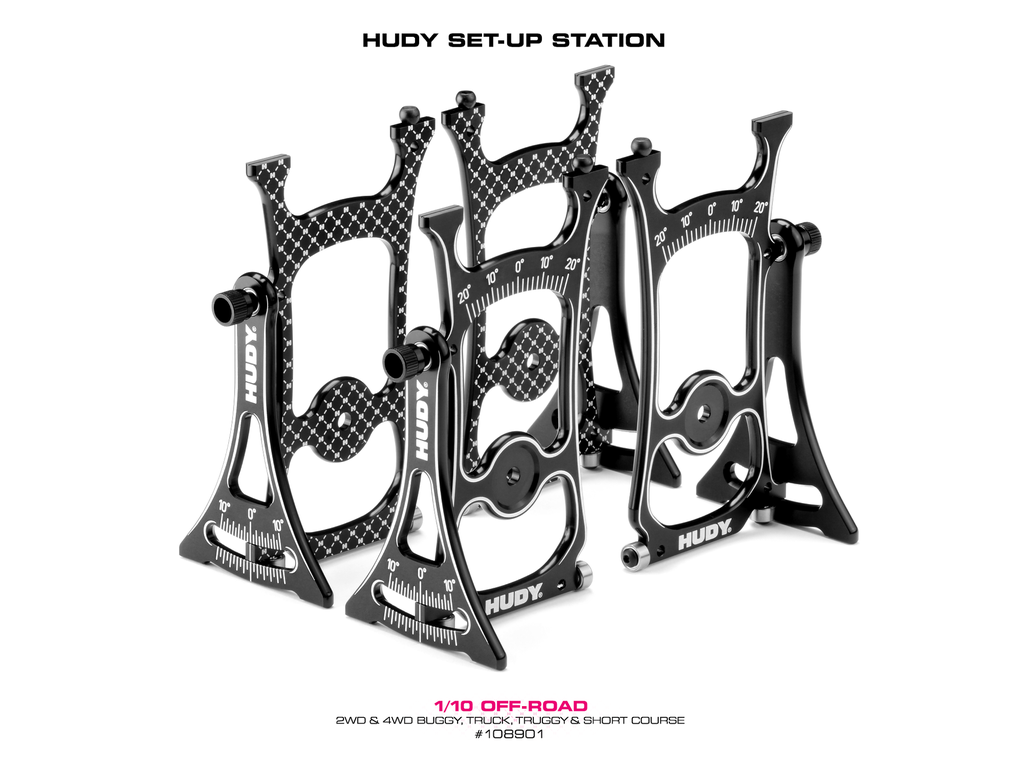

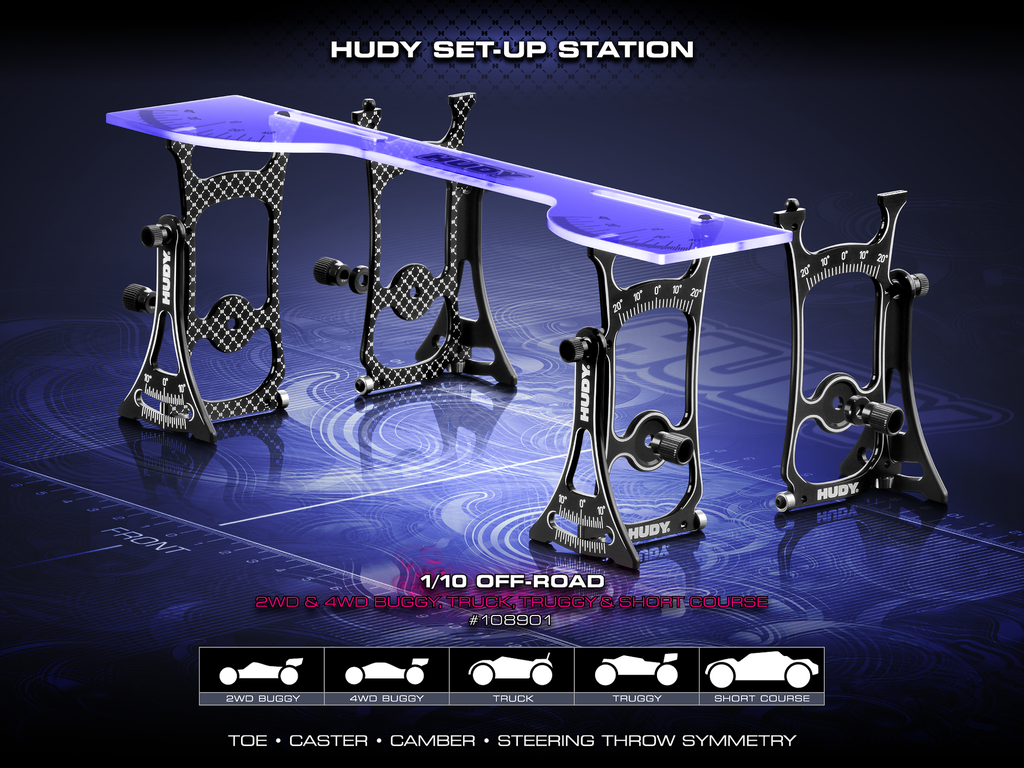

The HUDY Set-up Station for all 1/10 off-road cars is a vital set-up tool used for a complete suspension geometry adjustment. The Set-up Station is used to measure and adjust the front & rear toe, caster, camber, camber gain and steering throw symmetry.
HUDY Set-up Stations have become an industry standard after more than 30 years as the most popular set-up tools in the RC world. Having the correct car setup is one of the most important factors in winning races and that is why HUDY Set-up Stations are used by the World Champions.
The stands are CNC-machined from high-grade Swiss 7075 T6 aluminum, black coated and laser engraved from both sides. The upside measure plate used for toe/steering adjustment is CNC-machined from tough acrylic plastic and features printed scratch resistant scales.
The Set-up Station includes aluminum assembly nuts for quick and straight-forward "one screw" assembly. The 12 high-precision ball-bearings ensure backlash-free & wobble-free operation and ultra-precise set-up adjustments.
The entire system is very small, light, and well-designed for easy transport to the track.
This universal Set-up Station fits all standard 1/10 off-road 2WD and 4WD cars. The included Upside Measure Plate in the #108901 Set-up Station fits all standard 1/10 off-road 2WD and 4WD cars. To use this Set-up Station on 1/10 off-road stadium truck, truggy and short course vehicles, the optional #108840 - Upside Measure Plate must be used.

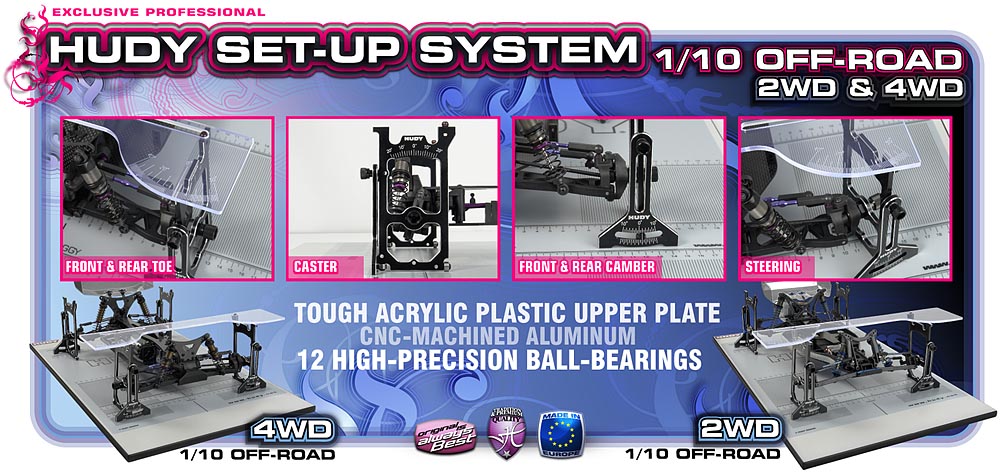

Set-up Station is used for measurement and adjustment of:
- Camber & camber gain - Caster - Front and rear toe - Steering throw symmetry
Main features:
- Must-have set-up tool for a complete suspension geometry adjustment - Quick and straight-forward "one screw" assembly/disassembly - Backlash-free, wobble-free mounting - Fully ball-bearing equipped set-up stands (12 high-precision ball-bearings) - Ultra-smooth, ultra-precise movement and operation - CNC-machined from high-grade premium Swiss 7075 T6 aluminum - CNC-machined upside measure plate form tough acrylic plastic - All components have prevision engraving for instant & reliable readings - Carrying box with foam inserts for safe storage & transportation - High-quality, super precision & long life - Industry standard for set-up tools since 1992
Includes:
- 4 set-up stands with installed ball-bearings - 4 camber gauges (triangular) with installed ball-bearing - 4 assembly nuts - 4 wheel nuts - 2 alu shims (5x11.8x4mm) to be used depending on the offset - 1 acrylic upside measure plate - Set-up Book - Carrying box with foam inserts for smart & safe storage and transportation
